Kitchen Hinges ?

@martin-f , and anyone who knows the mystery of cabinet hinges.

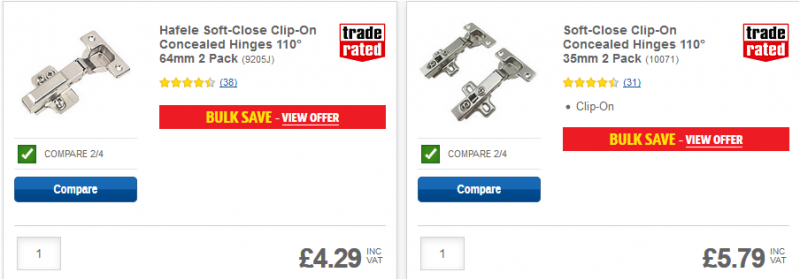

Martin , I understand you are a kitchen fitter . Can you please advise me on the cabinet door concealed hinges. I have fitted and adjusted quite a few of these over the years. Now I need to buy some for replacing the doors in our caravan kitchen . I just need the normal 110° hinge soft close . But they show a dimension on them 35mm or 64mm etc. What does this dimension refer to I have searched but can find no refernce to this dimension.
Thanks if you can help !

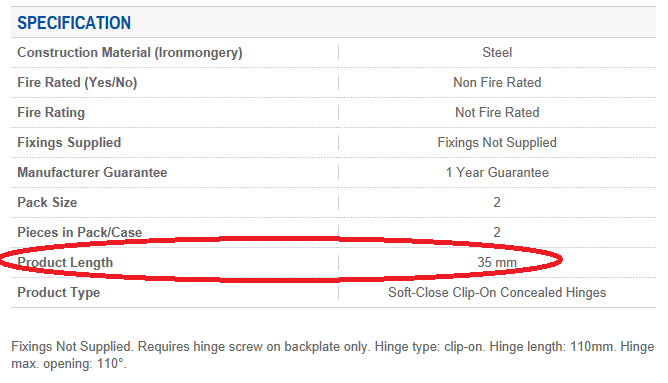

Hi Harry its the product length, if its a small door the 35mm will be fine.

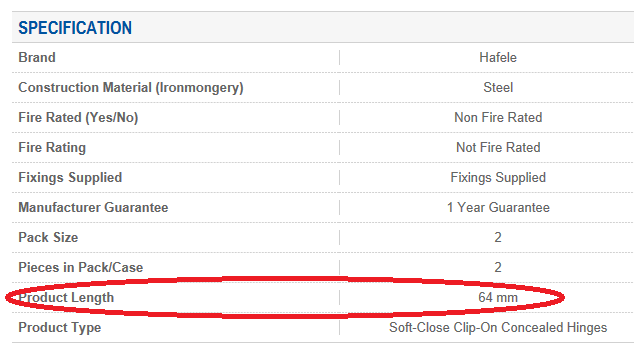

Thanks @martin-f . I bought a set of hinges today . They are 64mm long and distance to the hinge plate centre line is 35mm. So different makes are showing differing dimensions but hinges are the same size. Had a look at all my kitchen hinges all the same
