Lawnmower help

Discussion in 'Off-Topic Discussion' started by Loofah, Sep 7, 2021.

Page 1 of 2
  1. Loofah

    Loofah Admin Staff Member

    Joined:
    Feb 20, 2008
    Messages:
    12,587
    Gender:
    Male
    Location:
    Guildford
    Ratings:
    +21,708
    My lawnmower just gave out on me so after a bit of help please. Was running fine, left it idling while I went to empty grass box, returned and hit the throttle which killed the engine. Got it restarted and the powered roller works but any time you engage the rotary blade the engine dies.
    It feels like a fuel blockage or something clagging the blades but can't see anything.
    What should we be looking for?

    Loofah, Sep 7, 2021
    #1 Quote in Conversation
  2. Perki

    Perki Total Gardener

    Joined:
    Jun 2, 2017
    Messages:
    2,371
    Gender:
    Male
    Location:
    Lancashire
    Ratings:
    +8,496
    What lawnmower are you using Loofah ? No grass grass wedged between the blade and the deck ?

    Perki, Sep 7, 2021
    #2 Quote in Conversation
  3. Loofah

    Loofah Admin Staff Member

    Joined:
    Feb 20, 2008
    Messages:
    12,587
    Gender:
    Male
    Location:
    Guildford
    Ratings:
    +21,708
    Oh heck, it's a sarp slm 5360 hxr, which is an incarnation of a Honda model. Hoofing great thing it is and needs a good clean, but no apparent debris catching anywhere

    Loofah, Sep 7, 2021
    #3 Quote in Conversation
  4. JWK

    JWK Gardener Staff Member

    Joined:
    Jun 3, 2008
    Messages:
    30,845
    Gender:
    Male
    Location:
    Surrey
    Ratings:
    +46,063
    Is the blade release control somehow fouling the carb/throttle?

    JWK, Sep 7, 2021
    #4 Quote in Conversation
  5. Loofah

    Loofah Admin Staff Member

    Joined:
    Feb 20, 2008
    Messages:
    12,587
    Gender:
    Male
    Location:
    Guildford
    Ratings:
    +21,708
    Dunno lol what would that look like?! If you mean the levers on the handle then no

    Loofah, Sep 7, 2021
    #5 Quote in Conversation
  6. Perki

    Perki Total Gardener

    Joined:
    Jun 2, 2017
    Messages:
    2,371
    Gender:
    Male
    Location:
    Lancashire
    Ratings:
    +8,496
    Does it run well while stood ? or is it hunting slightly or doing anything else ?
    Part of the Danarm family well made machines you could say better made than the honda machines

    Perki, Sep 7, 2021
    #6 Quote in Conversation
  7. Loofah

    Loofah Admin Staff Member

    Joined:
    Feb 20, 2008
    Messages:
    12,587
    Gender:
    Male
    Location:
    Guildford
    Ratings:
    +21,708
    Generally running fine but tricky to restart after the throttle kills the engine. I don't understand why the powered roller works fine but the blades don't. Might have to remove some parts to see if there's something clagging up the works

    Loofah, Sep 7, 2021
    #7 Quote in Conversation
  8. Perki

    Perki Total Gardener

    Joined:
    Jun 2, 2017
    Messages:
    2,371
    Gender:
    Male
    Location:
    Lancashire
    Ratings:
    +8,496
    I'd take the bowl off the carb ( easy job to do ) and see if it got bit of dirt etc inside it, if it has a clean of the carb and jets is acquired .

    You could look at the blade brake system and see if the blade turns free . If I remember correctly turn the mower on its side not running ( air filter facing up ) engaged the blade to drive and move the blade with your other hand the blade should be free and easy to move.

    • Like Like x 1
      Perki, Sep 7, 2021
      #8 Quote in Conversation
    • JWK

      JWK Gardener Staff Member

      Joined:
      Jun 3, 2008
      Messages:
      30,845
      Gender:
      Male
      Location:
      Surrey
      Ratings:
      +46,063
      Further down near the carb, there will be an idle adjustment screw on the spring loaded butterfly flap, if the blade control cable is catching that might cause it to stall.

      JWK, Sep 8, 2021
      #9 Quote in Conversation
    • Loofah

      Loofah Admin Staff Member

      Joined:
      Feb 20, 2008
      Messages:
      12,587
      Gender:
      Male
      Location:
      Guildford
      Ratings:
      +21,708
      Will do. It looks pretty accessible thankfully! I tried turning the blades yesterday and they were pretty stiff but I hadn't engaged the drive so will double check...

      Will have a look for it :)

      • Like Like x 1
        Loofah, Sep 8, 2021
        #10 Quote in Conversation
      • Loofah

        Loofah Admin Staff Member

        Joined:
        Feb 20, 2008
        Messages:
        12,587
        Gender:
        Male
        Location:
        Guildford
        Ratings:
        +21,708
        Is it wrong that this is more fun than cutting the grass? I'm quite enjoying looking at all the engine diagrams! :)

        • Funny Funny x 1
          Loofah, Sep 8, 2021
          #11 Quote in Conversation
        • JR

          JR Chilled Gardener

          Joined:
          Jul 19, 2020
          Messages:
          954
          Gender:
          Male
          Occupation:
          Retired oil magnate
          Location:
          Cotswolds
          Ratings:
          +2,381
          On my Honda the blades drive direct from the motor, and then a pulley under the blades drives the self propel with a belt.
          Because the roller turns normally, I'd be inclined to suspect a jammed blade brake as suggested earlier.

          JR, Sep 8, 2021
          #12 Quote in Conversation
        • Loofah

          Loofah Admin Staff Member

          Joined:
          Feb 20, 2008
          Messages:
          12,587
          Gender:
          Male
          Location:
          Guildford
          Ratings:
          +21,708
          OK, I'll pull that out later too :)

          Loofah, Sep 8, 2021
          #13 Quote in Conversation
        • Loofah

          Loofah Admin Staff Member

          Joined:
          Feb 20, 2008
          Messages:
          12,587
          Gender:
          Male
          Location:
          Guildford
          Ratings:
          +21,708

          • Like Like x 1
            Loofah, Sep 8, 2021
            #14 Quote in Conversation
          • Loofah

            Loofah Admin Staff Member

            Joined:
            Feb 20, 2008
            Messages:
            12,587
            Gender:
            Male
            Location:
            Guildford
            Ratings:
            +21,708

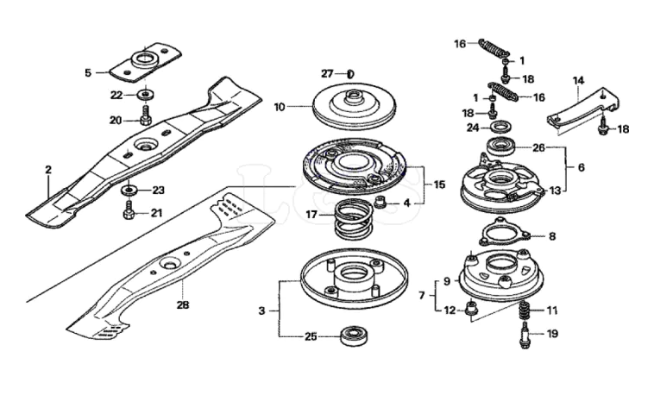

            Blade assy looks to be OK. I've pulled the throttle and the rotor spins OK; have also disassembled and no blocks or breaks seen.

            Can't get it started now so going to look at the carb. Did start on this but lots of fuel spurted out so stopped straight away. Have since realised there should be a shut off lever in there somewhere!

            Loofah, Sep 8, 2021
            #15 Quote in Conversation
