new decking project

Discussion in 'Garden Projects and DIY' started by Gizmo, Oct 23, 2020.

  1. Gizmo

    Gizmo Gardener

    Joined:
    Sep 19, 2020
    Messages:
    184
    Gender:
    Male
    Ratings:
    +197
    hi we are thinking of putting in new decking , now the existing decking is 11 foot x 8 foot with fasica the boards are 84mm x 19mm
    we are looking at new decking 11 foot x 8 foot with boards of 120mm x 28mm would we need to change the joists from the existing decking to accomodote boards at 120mm x 28mm with fasica boards all the way round the new decking
    thanks for your help and advice

  2. ricky101

    ricky101 Total Gardener

    Joined:
    Jun 15, 2016
    Messages:
    1,973
    Gender:
    Male
    Location:
    Sheffield
    Ratings:
    +2,597
    Hi,

    Looking at the photo in your other post, the existing joists will be fine.

    You will need to raise the fascia boards to accomodate the extra 9mm of the new decking boards.

    You may have to cut the last decking board down its length to fit the final gap, which is better up against the house wall rather than the garden end.

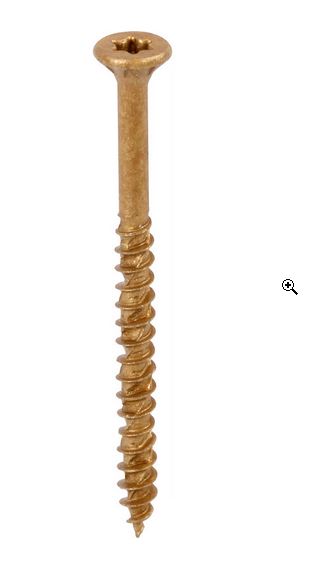

    You can get Tan coloured decking screws which will be better looking than the silver ones; using a string line and a diy board drilling template will help keep them looking even.

    This page has a complete run down of decking , including spacing etc.
    How to Plan & Lay a Deck | Wickes.co.uk


    • Like Like x 1
    • Informative Informative x 1
      Last edited: Oct 23, 2020
    • Gizmo

      Gizmo Gardener

      Joined:
      Sep 19, 2020
      Messages:
      184
      Gender:
      Male
      Ratings:
      +197
      Thanks for your reply the existing joist is 3 x 2 inch with fasica at 84mm x 19mm the same as the boards.
      How can a 120mm fasica fit on to a 3 x 2 inch joist won't there be 36 mm difference

      Thanks

    • ricky101

      ricky101 Total Gardener

      Joined:
      Jun 15, 2016
      Messages:
      1,973
      Gender:
      Male
      Location:
      Sheffield
      Ratings:
      +2,597
      You will have to cut the board to fit , if you want the Fascia to match the new Decking.

      Easy enough with a half decent saw, the decking grooves acting as an easy guide.


      • Like Like x 1
      • Gizmo

        Gizmo Gardener

        Joined:
        Sep 19, 2020
        Messages:
        184
        Gender:
        Male
        Ratings:
        +197
        Thank you for your reply. Unfortunately I have trouble in cutting a 1 meter board let along a 11 foot board due to my health would it not be easier to put in bigger joist
        To accommodate 120 mm decking fasica
        Thanks

      • pete

        pete Growing a bit of this and a bit of that....

        Joined:
        Jan 9, 2005
        Messages:
        32,367
        Gender:
        Male
        Occupation:
        Retired
        Location:
        Mid Kent
        Ratings:
        +41,025
        Why cant the fascia drop below the thickness of the joists?
        Or have I got the wrong end of the stick.

        Can you get a local joinery to rip a board down for you, 10 second job.

        • Agree Agree x 2
        • ricky101

          ricky101 Total Gardener

          Joined:
          Jun 15, 2016
          Messages:
          1,973
          Gender:
          Male
          Location:
          Sheffield
          Ratings:
          +2,597
          You need to cut 27mm off the 120mm board, you forgot the 9mm extra thickness of the new board.

          Replace all the joists !! - think I would get some decking the same thickness as the orignal then you dispense with these problems ?

          As @pete says , many timber merchants / woodyards will cut things to size for you.

          The alternative is hire or buy a small circular saw, a few to buy around the £40 mark.

          Wickes 185mm Corded Circular Saw with Laser Guide 240V – 1300W | Wickes.co.uk

          190mm Circular Saw Hire at Brandon Hire Station

          Perhaps if you mention what general area you are in there might be some regular GC member nearby who can help you out ?

          • Like Like x 1
            Last edited: Oct 23, 2020
          • Freddy

            Freddy Miserable git, well known for it

            Joined:
            Jul 15, 2007
            Messages:
            9,237
            Gender:
            Male
            Occupation:
            Retired - yay!
            Location:
            Bristol
            Ratings:
            +11,946
            I agree with @pete . If you want a piece cut to a certain size, pop along to your local joiner company.

            Last edited: Oct 24, 2020
          • Mike Allen

            Mike Allen Total Gardener

            Joined:
            Jan 4, 2014
            Messages:
            2,877
            Gender:
            Male
            Occupation:
            Retired. Plant Pathologist.
            Location:
            Eltham. SE. London
            Ratings:
            +6,075
            B&Q do a cut to size service.

          • pete

            pete Growing a bit of this and a bit of that....

            Joined:
            Jan 9, 2005
            Messages:
            32,367
            Gender:
            Male
            Occupation:
            Retired
            Location:
            Mid Kent
            Ratings:
            +41,025
            Only if they supply the timber. :biggrin:

            • Agree Agree x 2
            • Scrungee

              Scrungee Well known for it

              Joined:
              Dec 5, 2010
              Messages:
              15,832
              Location:
              Central England on heavy clay soil
              Ratings:
              +27,311
              Do you have a big enough gap between the left hand side of the decking and the sleepers to easily remove and refix a new vertical board to suit the increased thickness of the new decking? Or get a hacksaw/metal cutting reciprocating saw blade/angle grinder in there to remove existing screws?

              • Friendly Friendly x 1
              • Gizmo

                Gizmo Gardener

                Joined:
                Sep 19, 2020
                Messages:
                184
                Gender:
                Male
                Ratings:
                +197
                Many thanks for your advice I was thinking of what type of screw would be best and how many per board as the decking was a decking kit from edeck and the screws when removed where breaking alot this is why I put different screws in which come to over 200.
                There is not enough space between the decking and the flower beds to put in new boards of a different size without cutting the joist down.
                I get my decking online at edeck and as far as I have seen they only cut length and not wide to size.
                I cannot go down to local joiner as I have only a small mobility car.
                I can't use anything like a electric saw as I am all ways cutting my self with a hand saw so concerned over serious injury.
                Thanks for your help

              • pete

                pete Growing a bit of this and a bit of that....

                Joined:
                Jan 9, 2005
                Messages:
                32,367
                Gender:
                Male
                Occupation:
                Retired
                Location:
                Mid Kent
                Ratings:
                +41,025
                If the screws keep breaking try using a clearance hole in the deck board first, if you aren't already.
                Bloody Chinese screws.:biggrin:

              • Gizmo

                Gizmo Gardener

                Joined:
                Sep 19, 2020
                Messages:
                184
                Gender:
                Male
                Ratings:
                +197
                many thanks for your replys sorry not been here i was admitted to hospital for stroke symptoms turns out i got a clot in the nose , anyway i have started putting in new decking and woundering what decking oil to use thanks for your advice

                • Friendly Friendly x 2
                • HarryS

                  HarryS Eternally Optimistic Gardener

                  Joined:
                  Aug 28, 2010
                  Messages:
                  8,590
                  Gender:
                  Male
                  Occupation:
                  Retired
                  Location:
                  Wigan
                  Ratings:
                  +15,346
