Tongue & Groove cladding how to fix ?

Discussion in 'Off-Topic Discussion' started by JWK, Sep 25, 2021.

  1. JWK

    JWK Gardener Staff Member

    Joined:
    Jun 3, 2008
    Messages:
    22,677
    Gender:
    Male
    Location:
    Surrey
    Ratings:
    +27,438

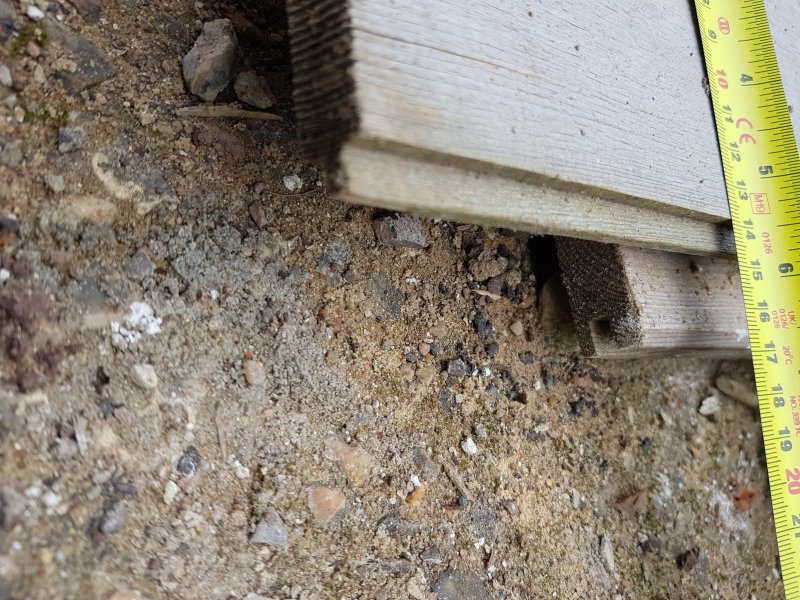

    I'm making a small fence to hide the wheelie bins next to a ramp. I'm going to use softwood tongue & groove, its 150mm wide and 15mm thick:

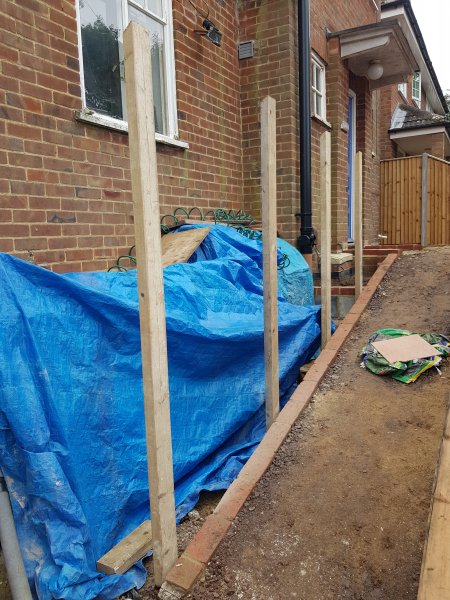

    Going to be nailed to these 4 uprights:

    How best to fix them, should I use a lost head type nail through the tongue? What sort of nail, I'm thinking stainless steel to avoid rust marks showing? Or would a galvanised fence nail be OK?

  2. pete

    pete Growing a bit of this and a bit of that....

    Joined:
    Jan 9, 2005
    Messages:
    35,579
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Mid Kent
    Ratings:
    +49,791
    Secret fix was the usual way, like you say, through the tongue, and then the next board put on top.
    But for something like this, which is really fencing I think just face fixing would be ok.
    Stainless is always the best, but galvanised nails would also be ok.

    Most would use brads and nail gun these days.

    I think it depends on what kind of look you are going for and what kind of finish you will be using.

    • Like Like x 1
    • JWK

      JWK Gardener Staff Member

      Joined:
      Jun 3, 2008
      Messages:
      22,677
      Gender:
      Male
      Location:
      Surrey
      Ratings:
      +27,438
      Thanks for the advice @pete, stainless steel nails it is then. I want it to look neat so will go down the secret fix method.

      I intend to stain and preserve it. Not sure what with yet, any recommendations?

      It was left overs from a neighbour's shed, the carpenter used a gun to fix them but it's not worth me getting one for such a small job.

      • Agree Agree x 1
      • pete

        pete Growing a bit of this and a bit of that....

        Joined:
        Jan 9, 2005
        Messages:
        35,579
        Gender:
        Male
        Occupation:
        Retired
        Location:
        Mid Kent
        Ratings:
        +49,791
        Not very well up on outdoor wood finishes these days, most tend to be purely decorative, with a bit of wax added so that the water runs off the first time it gets rain on it.
        I'm assuming the timber is pressure treated.

        You appear to be on a fair slope there or is it the camera angle.

        Just one other thing, probably obvious but worth a mention, horizontal t&g should always be applied tongue upwards otherwise water can lay in the grooves.

        • Like Like x 2
        • JR

          JR Chilled Gardener

          Joined:
          Jul 19, 2020
          Messages:
          781
          Gender:
          Male
          Occupation:
          Retired oil magnate
          Location:
          Cotswolds
          Ratings:
          +1,861
          I've used 'Ronseal fencelife plus' water based with a 5 year gaurantee. Spray or brush. After 5 years just apply another coat.
          Screwfix or B&Q.

          • Like Like x 1
          • JWK

            JWK Gardener Staff Member

            Joined:
            Jun 3, 2008
            Messages:
            22,677
            Gender:
            Male
            Location:
            Surrey
            Ratings:
            +27,438
            Thanks @JR that is very helpful as I haven't used any sort of outdoor wood/fence finish for years so am really behind the times.

            • Like Like x 1
            • Friendly Friendly x 1
            • hoofy

              hoofy Gardener

              Joined:
              Sep 4, 2018
              Messages:
              259
              Gender:
              Male
              Location:
              Lancashire
              Ratings:
              +185
              You might regret that choice. Secret nailing is fine indoors when you wouldn't expect much movement in the floor boards, but outside those boards are going to shrink and cup, especially with them being 150mm wide, you will probably get quite a bit of cupping.

              You might get away with it, but I doubt it, and if I were you I would use two nails at each fixing point.

              • Informative Informative x 1
              • JWK

                JWK Gardener Staff Member

                Joined:
                Jun 3, 2008
                Messages:
                22,677
                Gender:
                Male
                Location:
                Surrey
                Ratings:
                +27,438
                Good point, I don't want to do this job twice. Although they haven't warped even though I have stored them outside for two years with no protection. Maybe being stacked helps keep them straight.

                I suppose lost head nails won't stop them cupping? What sort of nail should I use? I'm wondering about screwing them instead to be ultra safe.

              • hoofy

                hoofy Gardener

                Joined:
                Sep 4, 2018
                Messages:
                259
                Gender:
                Male
                Location:
                Lancashire
                Ratings:
                +185
                I sell pressure treated t&g to the public, who use it for gates, sheds etc, and I get plenty of feedback and I know that the vast majority use screws and those screws do the job and they also have stood the test of time, ime.

                I think people might tell you lost heads are the right thing to use but that's probably from the old timer joiners knowledge bank who didn't have the luxury of impact drivers.

                • Like Like x 2
                • JWK

                  JWK Gardener Staff Member

                  Joined:
                  Jun 3, 2008
                  Messages:
                  22,677
                  Gender:
                  Male
                  Location:
                  Surrey
                  Ratings:
                  +27,438
                  • Like Like x 1
                  • Scrungee

                    Scrungee Well known for it

                    Joined:
                    Dec 5, 2010
                    Messages:
                    16,522
                    Location:
                    Central England on heavy clay soil
                    Ratings:
                    +28,970
                    Ask @hoofy about ss tongue-tite, lost-tite, etc. screws, all new stuff for me, all I can remember is fixing WR Cedar boards with aluminium alloy nails.


                    P.S. I am I right in thinking (back about 50 years or so) being told that wood resin can react with steel screws, causing staining?

                    • Like Like x 1
                      Last edited: Sep 27, 2021
                    • hoofy

                      hoofy Gardener

                      Joined:
                      Sep 4, 2018
                      Messages:
                      259
                      Gender:
                      Male
                      Location:
                      Lancashire
                      Ratings:
                      +185
                      I think those screws would be fine, as would green coated decking screws. I think 40mm screws would be sufficient but no problem if you use 50mm.

                      The issue people have problems with using t&g outside is the shrinkage and the swell and there's nothing you can do about that except make an allowance when you put the boards on. If they are bone dry now they are only going to swell. If they soaked they will only shrink and if they are somewhere in-between they will do either/both.

                      The boards you have look like they have a decent length of tongue so you should be fine. Some boards have such a short tongue that when they shrink the tongue comes out of the next groove.

                      • Like Like x 1
                      • Agree Agree x 1
                      • pete

                        pete Growing a bit of this and a bit of that....

                        Joined:
                        Jan 9, 2005
                        Messages:
                        35,579
                        Gender:
                        Male
                        Occupation:
                        Retired
                        Location:
                        Mid Kent
                        Ratings:
                        +49,791

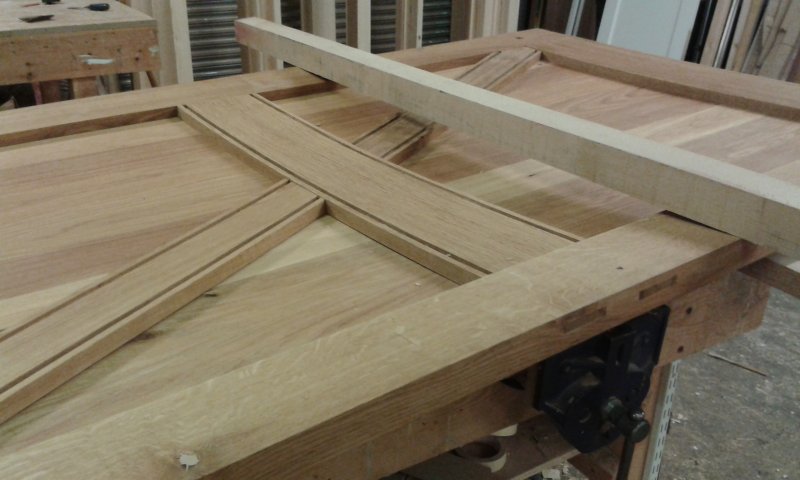

                        I hesitate to show this as it was a job that went wrong, but it does illustrate the power of shrinkage and swelling.

                        We made 3 pairs of solid oak garage doors out of kiln dried oak, the customer said he wanted to put his own finish on them.
                        After weeks of driving rain that autumn he rang to say there was a problem.

                        All the doors had bowed in their width, despite having put 2 mm gaps between all the boards.
                        The width of the boards had increased in size and because they couldn't force the stiles off, the doors had to bow.
                        The timber had not been oiled and been in driving rain for a month.

                        I've always been dubious about putting two fixings across the face off a board as often the boards split at the fixings when the wood shrinks.
                        Often a nail will allow a small amount of movement to take place, scews less so.

                        • Informative Informative x 1
                        • hoofy

                          hoofy Gardener

                          Joined:
                          Sep 4, 2018
                          Messages:
                          259
                          Gender:
                          Male
                          Location:
                          Lancashire
                          Ratings:
                          +185
                          Agreed, but you can over think what is an outdoor (fencing) job. The job will never look perfect as the boards shrink you will get gaps between them and you will be able to see the lines, although you shouldn't see daylight because of the tongue.

                          So, if you put one fixing in the middle of each board you will have less risk of the board splitting, but the cupping and shrinking where the boards fit together could be an issue, or put two fixings in each board and risk splitting but less of a cupping/shrinking problem?

                          Timber will do what it wants to do and the odd piece might even surprise you. Some jobs last a lifetime while some jobs perish within a few years.

                          Just go and put the boards on mate, you could have nearly finished the job in the time you've been sat there reading this thread and scratching your head.:biggrin:

                          • Agree Agree x 1
                          • Funny Funny x 1
                          • pete

                            pete Growing a bit of this and a bit of that....

                            Joined:
                            Jan 9, 2005
                            Messages:
                            35,579
                            Gender:
                            Male
                            Occupation:
                            Retired
                            Location:
                            Mid Kent
                            Ratings:
                            +49,791
                            Well I do agree, you can over think, as with many threads the subject snowballs.
                            They are only thoughts.

                            I assume John has almost finished it as we speak.:biggrin:
