Heavy clay drainage help

Discussion in 'NEW Gardeners !' started by Smudgedhorizon, Jan 10, 2016.

  1. JWK

    JWK Gardener Staff Member

    Joined:
    Jun 3, 2008
    Messages:
    30,676
    Gender:
    Male
    Location:
    Surrey
    Ratings:
    +45,603
    I think you should give it a bit longer to take effect. Even down here in the South, with much lower rainfall than you have got, I've seen fields flooded. I would recommend you lift the manhole cover to check that water is draining away from the new drain, if it isn't there is a problem and you need to get the landscaper back in.

    Like Jiffy, I've experienced land drains going into farmland and the clay soil is just backfilled, obviously it would be better in a smaller run like your garden to back fill with gravel but I reckon your main problem is that the digger has compacted your soil, incorporating mushroom compost is a good idea but not whilst your soil in waterlogged. You need to wait for it to dry out otherwise it will just get worse. I'd keep off it till the spring.

    • Informative Informative x 2
    • Smudgedhorizon

      Smudgedhorizon Gardener

      Joined:
      Jul 25, 2014
      Messages:
      44
      Gender:
      Female
      Location:
      Cheshire
      Ratings:
      +49
      I have checked the manhole a few times now on different days and never seen so much as a drop leaving the pipe, yet the garden is absolutely sodden still, and I mean three inch deep surface puddles, so boggy all over I properly sink into it soaked, so it doesn't seem like anything is working, especially since it's been 4 weeks now with no improvement and per meant standing water. I don't know, if it is working it is certainly a far cry from the drainage solution we were told to expect.

      Ive just phoned a different drainage company who have said it sounds like a lot of mistakes were made-

      -Heavy machinery should never have been used on waterlogged clay, it just compacts it and makes the problem worse, and makes a mess of the area. it should be done by hand with a spade.
      -it should have been backfilled with gravel or any other free draining aggregate, but never just the same heavy clay. For the drains to work the water has to reach them. If the water could easily permeate a foot down through the heavy clay then drainage wouldn't have been needed to start with!
      -the subsoil removed to dig the trenches should have been removed from the garden not just left on top
      - weed membrane is completely inappropriate and shouldn't have been used.

      They have basically said it sounds like it will never work properly the way it's been done, but they can come and properly assess it in person Saturday morning, so I've said yes (as I'm waiting for the original contractor to come back from holiday anyway.) If the company will give me a written report of sorts, of what they have found wrong with it and how it won't work, would it be a good idea to show the first contractor when he comes back to look at everything?

      • Informative Informative x 1
      • Jiffy

        Jiffy The Match is on Fire

        Joined:
        Aug 25, 2011
        Messages:
        11,166
        Occupation:
        Pyro
        Location:
        Retired Next To The Bonfire in UK
        Ratings:
        +31,449
        One thing that comes to mind is that you rotovated the site first,then the digger came in, turning up soil in the winter months will make things worst and will take a alot longer to dry out IMHO
        edit
        Also you now have a air gap in the soil through pipes and gravel which will help dry out the sub soil better, just because a land drain is not running water it's not working

        • Useful Useful x 1
          Last edited: Jan 12, 2016
        • JWK

          JWK Gardener Staff Member

          Joined:
          Jun 3, 2008
          Messages:
          30,676
          Gender:
          Male
          Location:
          Surrey
          Ratings:
          +45,603
          That is a real indication the new drains haven't been laid correctly. Another problem could be that there is insufficient 'fall' allowing water to just sit in the pipe, it's better explained on this page:
          http://www.pavingexpert.com/gradient_01.htm

          That is a real worry too, subsoil will be very claggy and will need removing if you are ever to have a chance at getting a decent lawn.

          Sorry you're having all these problems smudgedhorizon, I think a second opinion will help you a lot with the original contractor. Hopefully the original contractor will be willing to sort it all out without any more expense on your part.

          • Like Like x 1
          • shiney

            shiney President, Grumpy Old Men's Club Staff Member

            Joined:
            Jul 3, 2006
            Messages:
            60,994
            Gender:
            Male
            Occupation:
            Retired - Last Century!!!
            Location:
            Herts/Essex border. Zone 8b
            Ratings:
            +117,264
            Don't tell the original contractor that you have had someone else look at it. you need to see what his reaction is to the problem. If he says that he will fix it then you ask him to put in writing what he intends doing to correct the problem.

            Then, if it doesn't sound correct to you, you can tell him that you have got someone else to look at it and 'this' is what he said. It's likely to put his back up but that can't be helped. All you say is that you need the job done properly. Then you are down to whether he will do it, give you your money back or you can go to court to get it back with the new person's report as your 'expert witness'.

            • Agree Agree x 2
            • Jiffy

              Jiffy The Match is on Fire

              Joined:
              Aug 25, 2011
              Messages:
              11,166
              Occupation:
              Pyro
              Location:
              Retired Next To The Bonfire in UK
              Ratings:
              +31,449
              Just for extra reading, I've put in many land drains for local landowners,
              just some examples of how some are done

              trench to a ditch,4inch pipe, clean gravel then back filled

              trench to a ditch, 4inch pipe, then back filled

              trench to ditch, clean gravel, then back filled

              trench to ditch, builders rubble, then back filled

              15 years later they're still working, but the last one is the not working as well when it was done, but it depens on soil types, rain fall and slope

              • Informative Informative x 1
              • Smudgedhorizon

                Smudgedhorizon Gardener

                Joined:
                Jul 25, 2014
                Messages:
                44
                Gender:
                Female
                Location:
                Cheshire
                Ratings:
                +49
                Thanks @Jiffy thats really good to know that the same method might have worked in a different situation, it gives me hope that this was a genuine mistake by the contractor and he hasn't intentionally done a bad job, hopefully he will be happy to rectify it once he sees it hasn't worked.

                Going back to the issue of amending the clay topsoil to improve drainage by adding organic matter, Ive found a local company who grow mushrooms and they can deliver 7.5 tonnes of loose mushroom compost for £130, which is very good value compared to other options, is that likely to be enough/too much? Or is that something that can really only be assessed as it is added? I'm terrible with sizes/quantities!

                • Friendly Friendly x 1
                • clueless1

                  clueless1 member... yep, that's what I am:)

                  Joined:
                  Jan 8, 2008
                  Messages:
                  17,778
                  Gender:
                  Male
                  Location:
                  Here
                  Ratings:
                  +19,594
                  7.5 tonnes is a huge, nay HUUUGGGEEE amount of mushroom compost.

                  The 60 bags I did mine with probably totalled about half a tonne, if that.

                  In fact, some approx calcs. I'd say each sack weighed about 15 kg. Times 60 is about 900 kgs.

                • Smudgedhorizon

                  Smudgedhorizon Gardener

                  Joined:
                  Jul 25, 2014
                  Messages:
                  44
                  Gender:
                  Female
                  Location:
                  Cheshire
                  Ratings:
                  +49
                  Haha oh right!! More than I need then? So will it be done by weight and not mass? I hate to be having a dumb blonde moment but I get really confused with how things are measured if I'm honest. I've seen it sold in bulk bags with no listed weight and in large bags listed in litres, and as loose in ton loads. I assumed that 7.5 tonnes was the capacity of the vehicle and it would be just a full load so to speak, rather than the actual weight of the compost itself, is that completely wrong? :rolleyespink:

                • Jiffy

                  Jiffy The Match is on Fire

                  Joined:
                  Aug 25, 2011
                  Messages:
                  11,166
                  Occupation:
                  Pyro
                  Location:
                  Retired Next To The Bonfire in UK
                  Ratings:
                  +31,449
                  Another way of draining the ground (fields) is with one of these, which is pull through the ground and make a tunnel the size of your arm and water trickle into them and down to a ditch but these will fill up in time and will have to be done again
                  [​IMG]

                  • Agree Agree x 1
                  • clueless1

                    clueless1 member... yep, that's what I am:)

                    Joined:
                    Jan 8, 2008
                    Messages:
                    17,778
                    Gender:
                    Male
                    Location:
                    Here
                    Ratings:
                    +19,594
                    I couldn't really guess how much you'd in terms of weight. It's easier to estimate by volume. Take the area to cover in metres square, multiply by the desired depth in metres to get the required number of cubic metres.

                    The thing to be careful of, us actually using too much. A depth of 10cm should be more than enough (10cm being 0.1m). Clay is actually good. UN fact it's excellent. Just not when it's 'just' clay. A few inches of mushroom compost mixed in near the surface will serve to hold the clay particlesapart, allowing drainage when wet, while retaining moisture when it's dry outside.

                    Something else happens when you loosen the clay with compost. All the earthworms love it. As they tunnel about to munch on the compost, they drag it under, mix it up, and keep little tunnels that further aid drainage:)

                    Go too far with it, and it will be too soft to support a nice lawn, and will be boggy in wet weather, and dry to the point of your grass dying in summer.

                  • JWK

                    JWK Gardener Staff Member

                    Joined:
                    Jun 3, 2008
                    Messages:
                    30,676
                    Gender:
                    Male
                    Location:
                    Surrey
                    Ratings:
                    +45,603

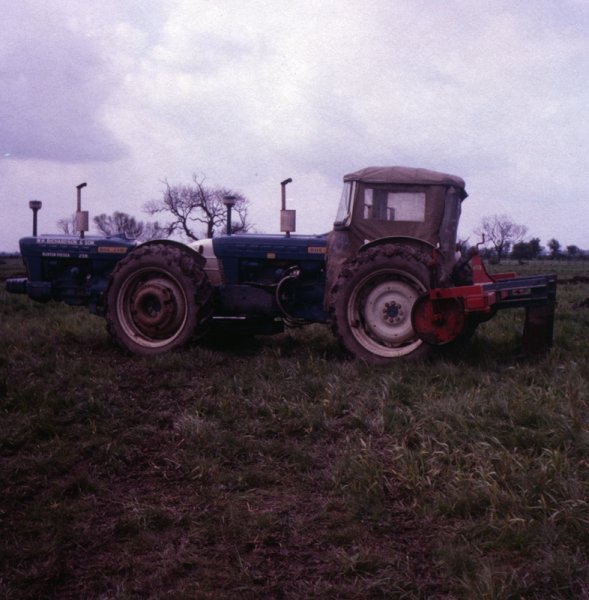

                    Called "moling" but needs a big tractor to pull it through heavy clay, this photo on our family farm back in the 1960's with a twin mole on the back of a double tractor :)

                    Church Farm Scenes_35.jpg

                    Sorry going off on a bit of a tangent here Smudgedhorizon.

                    Back to the quantities of mushroom compost needed, you said in your first post the garden is 30 X 30 ft, which is approx 10 X 10 metres = 100 sq metres. To get a 10cm (0.1metre) depth you need 10 cubic metres of compost, as follows:

                    Area = 10m X 10m = 100 m2
                    Depth = 0.1m
                    Volume required = Area X Depth = 100 X 0.1 = 10 cubic metres

                    Google says use a factor of 1.3 to convert volume to weight, so you'll need 13 tonnes.

                    My gut feel is that is hell of a lot of compost, maybe someone else can check my calculations, @Scrungee can you double check I know you're pretty good at quantities?

                    • Like Like x 2
                    • Smudgedhorizon

                      Smudgedhorizon Gardener

                      Joined:
                      Jul 25, 2014
                      Messages:
                      44
                      Gender:
                      Female
                      Location:
                      Cheshire
                      Ratings:
                      +49
                      Love the photo!

                      Oh thank you for that @JWK I'm bobbins with figures so that's a huge help. Ended up having a 25 minute argument with my husband about whether a tonne was a measurement of mass or weight and got absolutely nowhere with the actual compost quantity problem!

                      • Like Like x 1
                      • Scrungee

                        Scrungee Well known for it

                        Joined:
                        Dec 5, 2010
                        Messages:
                        16,524
                        Location:
                        Central England on heavy clay soil
                        Ratings:
                        +28,996
                        9.15 m x 9.15m x 0.1m = 8.37m3.

                        Can't find a weight per cubic metre (I'd ask the supplier) but wondering about how much the ground will be raised by adding 100mm of SMC (as it may not be the obvious answer of 100mm, as as for example adding 1m3 of pebbles to 1m3 of sand will not result in 2m3 of ballast), and whether raising the topsoiled area would cause flooding of the adjacent patio (I think that's what I can see in that pic taken through a window).

                        P.S. Is "100mm" the amount the ground is to be raised by, or the depth of SMC to to spread on the surface prior to digging in? Because the latter will be for 'bulked up' quantities and require much less SMC.

                        • Agree Agree x 1
                        • Useful Useful x 1
                          Last edited: Jan 13, 2016
                        • JWK

                          JWK Gardener Staff Member

                          Joined:
                          Jun 3, 2008
                          Messages:
                          30,676
                          Gender:
                          Male
                          Location:
                          Surrey
                          Ratings:
                          +45,603
                          Don't want to cause marital problems :) but I think both are kind of correct. Mass is essentially the same as weight, maybe you were arguing over volume and weight? A metric tonne is 1000kg (mass) but it is based on the mass of a cubic metre of water (volume) - that's as clear as mud now I re-read it :)

                          Yes that's a good point, raising the lawn area might cause a few other problems, like needing little retaining walls around it - although looking at your photos there appears to be concrete gravel boards at the bottom of the fence so you can't heap soil above that. Maybe just slope it towards the patio area to avoid needing a retaining wall/barrier/step.

                          • Like Like x 1
                          • Agree Agree x 1
                            Last edited: Jan 13, 2016
